YELLOW SERIES

Pumps 2000 Yellow Series air operated double diaphragm pumps are ATEX certified pumps, suitable for general water and slurry conditions, salt water, some low PH acid applications, applications requiring food grade approved materials of construction and more.

The Yellow series has an ATEX M2 rating. The pump housing is made of a nylon blend and the internal elastomers are hytrel. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.

High Volume Series

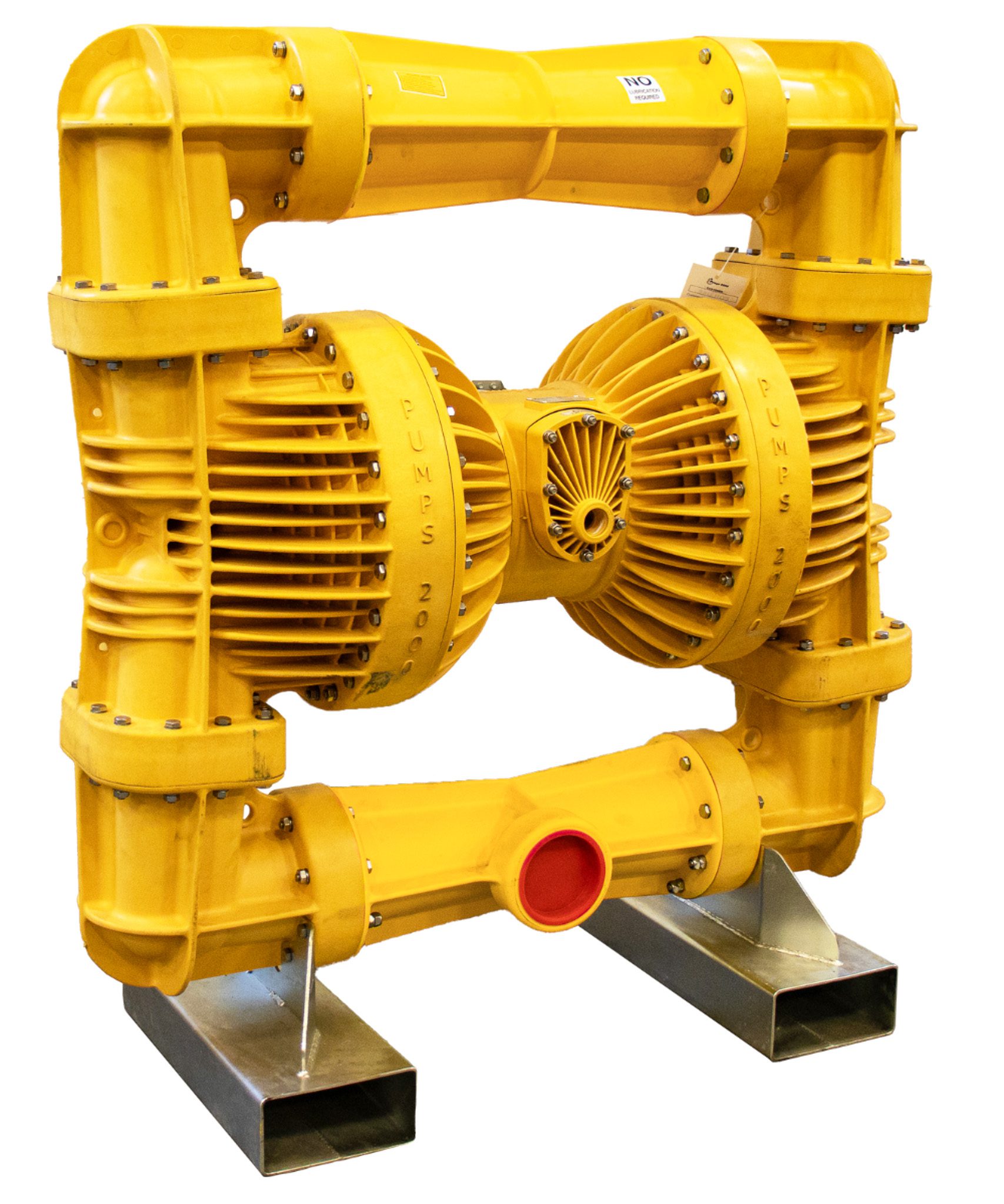

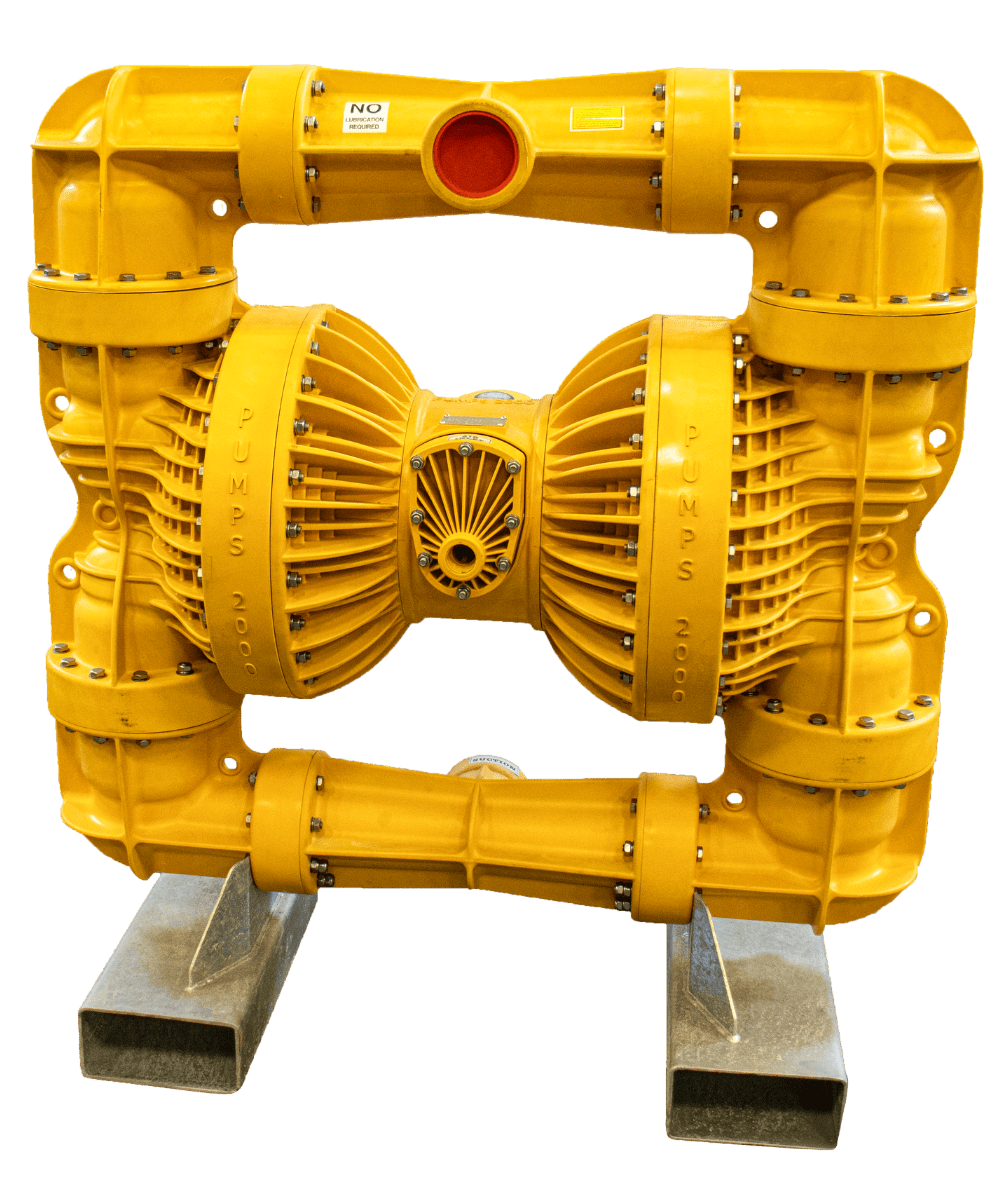

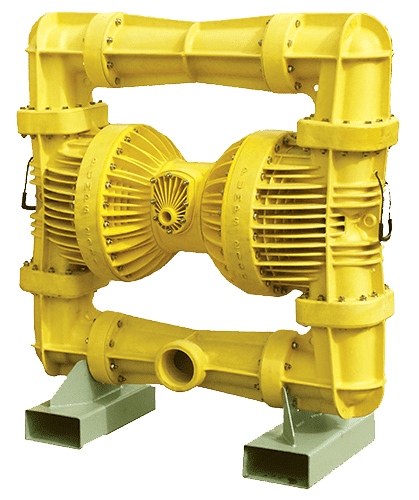

HV100SY – 4″ / 100mm High Volume Slurry Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 307lbs / 139.3kg Pump Weight
  • Passes suspended solids up to 3” / 75mm diameter
  • Maximum flow rate of 0-540 gpm / 2044 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

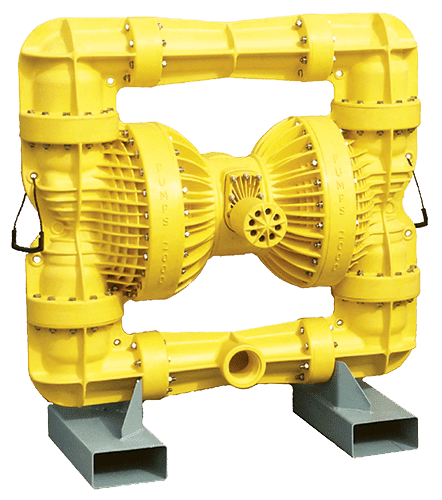

HV75BY – 3” / 75mm High Volume Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 287lbs / 130.2kg Pump Weight
  • Passes suspended solids up to 1.3″ / 33mm diameter
  • Maximum flow rate of 0-416 gpm / 1,575 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

Portable Series

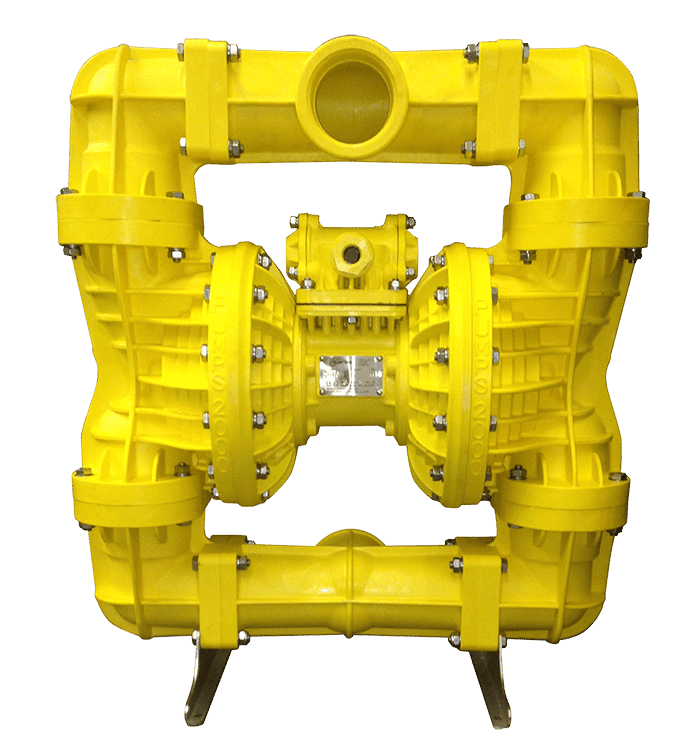

P75BY – 3” / 75mm Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 64 lbs / 29kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-215 gpm / 814 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

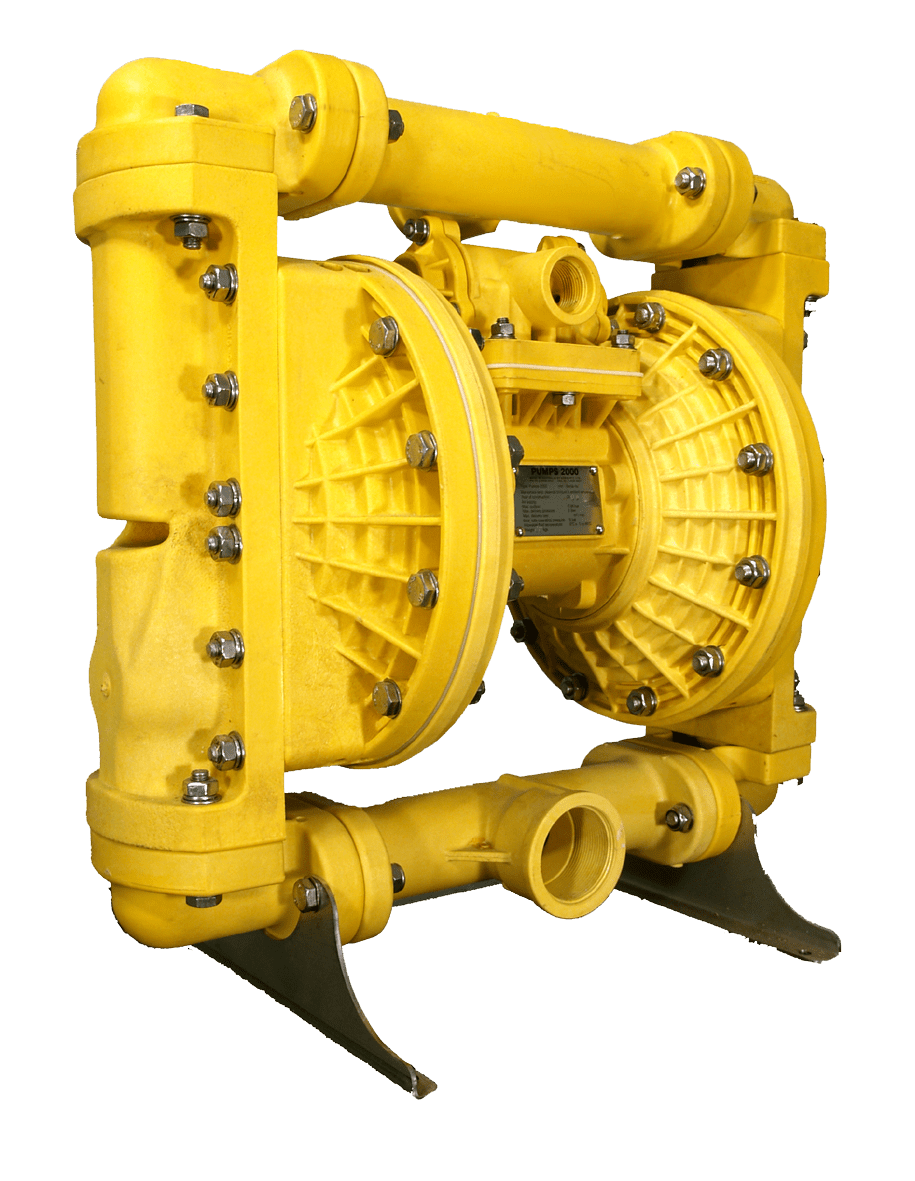

P50SY – 2” / 50mm Slurry Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 51lbs / 23.1kg Pump Weight
  • Passes suspended solids up to 1.5″ / 38mm diameter
  • Maximum flow rate of 0-146 gpm / 553 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

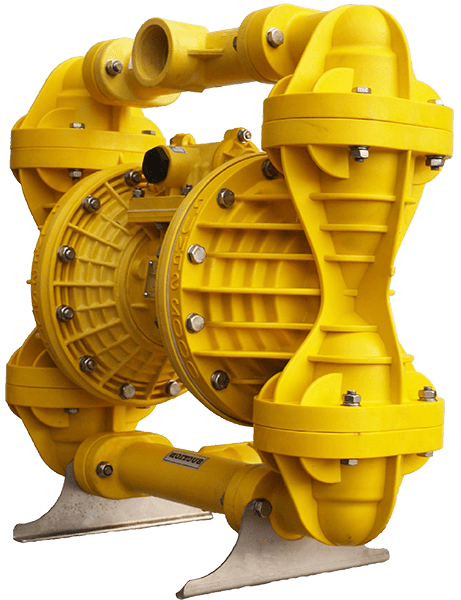

P50BY – 2” / 50mm Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 58lbs / 26.3kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-155 gpm / 586 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

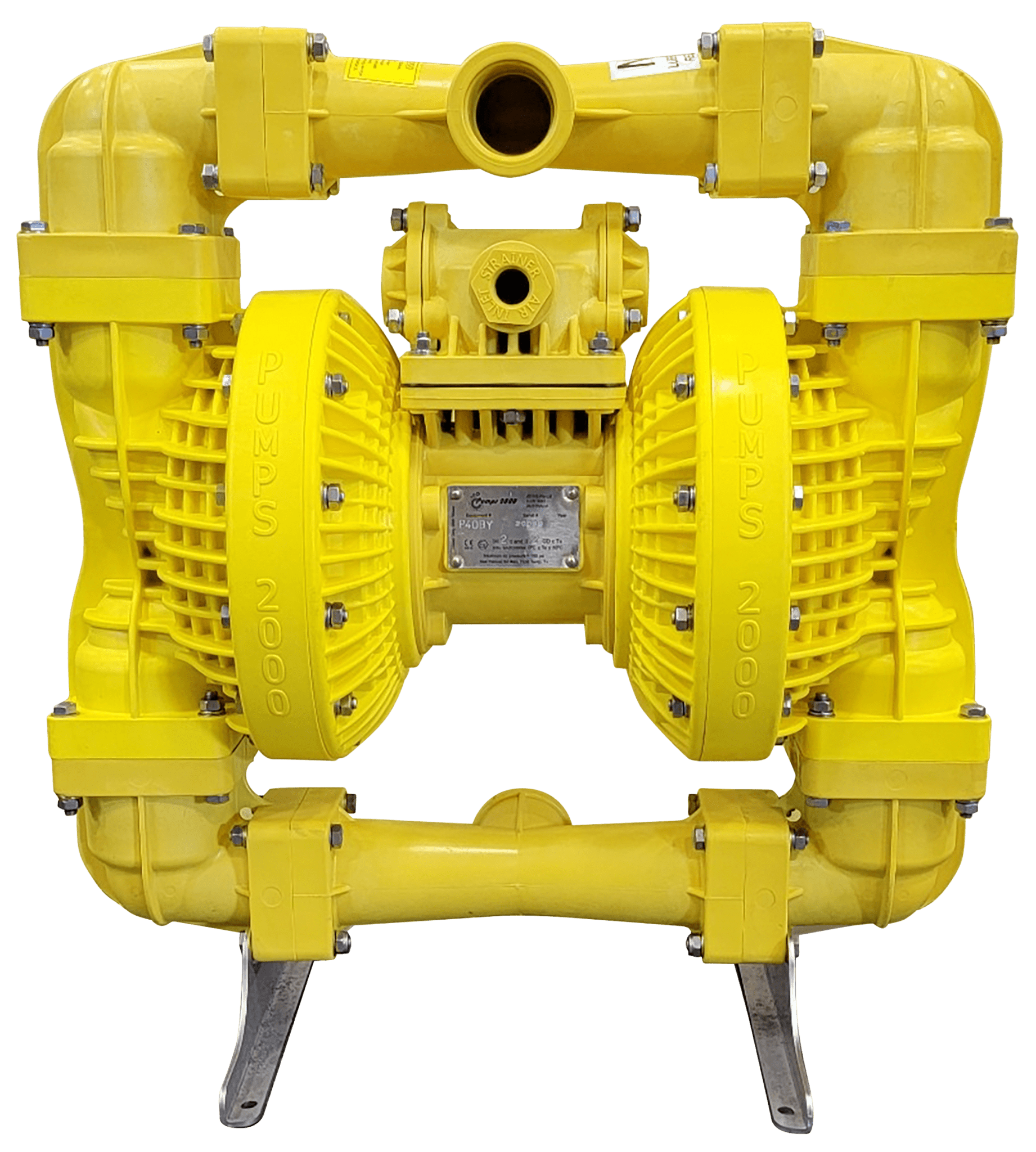

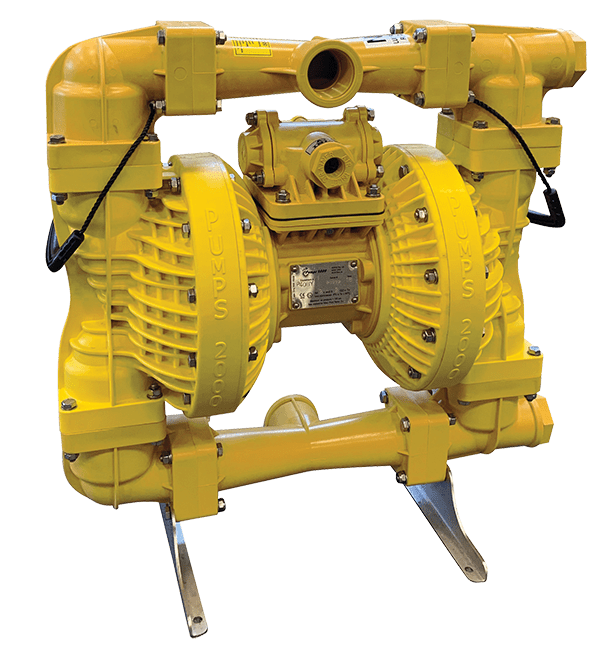

P40BY – 1.5” / 40mm Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 43 lbs / 19.5kg Pump Weight
  • Passes suspended solids up to .55” / 14mm diameter
  • Maximum flow rate of 0-117 gpm / 443 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

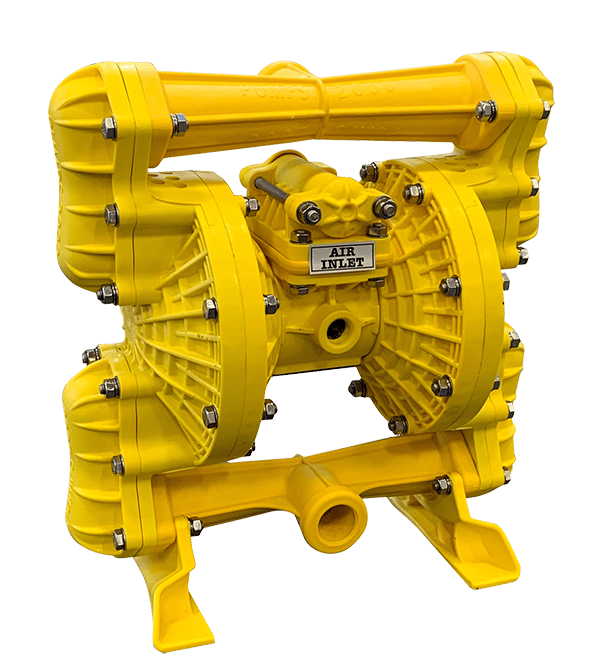

P25SY – 1” / 25mm Slurry Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 17lbs / 7.7kg Pump Weight
  • Passes suspended solids up to 0.8″ / 20mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

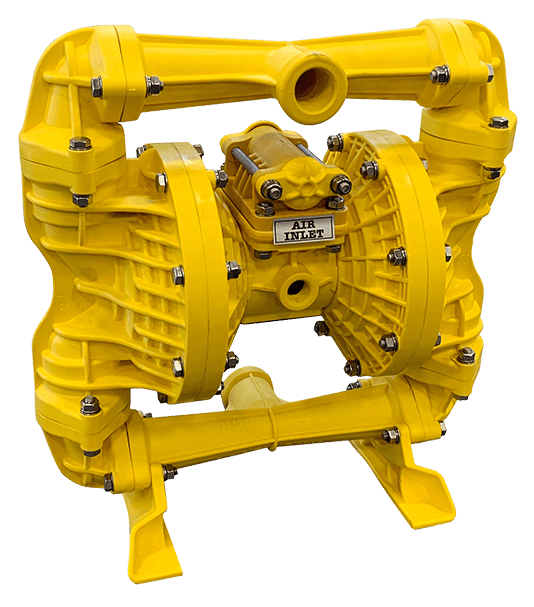

P25BY – 1” / 25mm Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 18lbs / 8.2kg Pump Weight
  • Passes suspended solids up to 0.3″ / 8mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

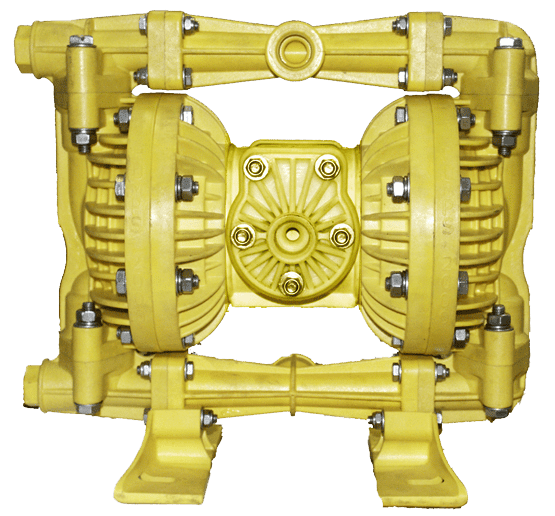

P15BY – ½” / 15mm Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 10lbs / 4.5kg Pump Weight
  • Passes suspended solids up to 0.2″ / 6mm diameter
  • Maximum flow rate of 0-16.4 gpm / 62 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

High Head Series

HH50BY – 2” / 50mm Double Staged Ball Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 109 lbs. / 49.4 kg Pump Weight
  • Passes suspended solids up to .71″ / 18mm diameter
  • Maximum flow rate of 0-80 gpm / 300 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

HH50SY – 2” / 50mm Double Staged Slurry Valve Yellow Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 101 lbs. / 45.8 kg Pump Weight
  • Passes suspended solids up to 1.5″ / 40mm diameter
  • Maximum flow rate of 0-80 gpm / 300 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET
