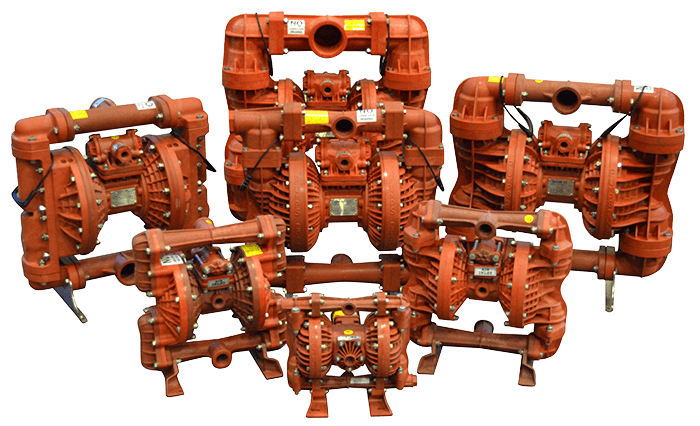

RED SERIES (FRAS)

Pumps 2000 Red Series (FRAS) air operated double diaphragm pumps are ATEX certified pumps suitable for continuous use in hazardous Explosive atmospheres. FRAS Series pumps are Fire Resistant & Anti-Static.

The Red Series has an ATEX M1 rating. The pump housing is made of a nylon blend and the internal elastomers are hytrel. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.

Portable Series

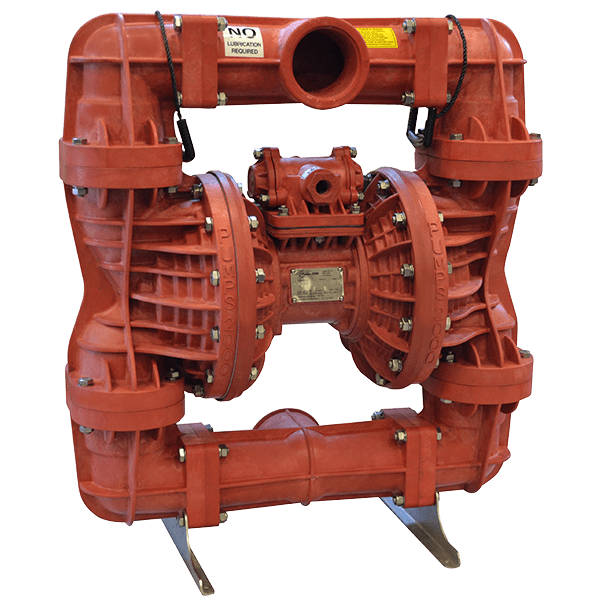

P75BR – 3” / 75mm Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 75lbs / 34kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-215 gpm / 814 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

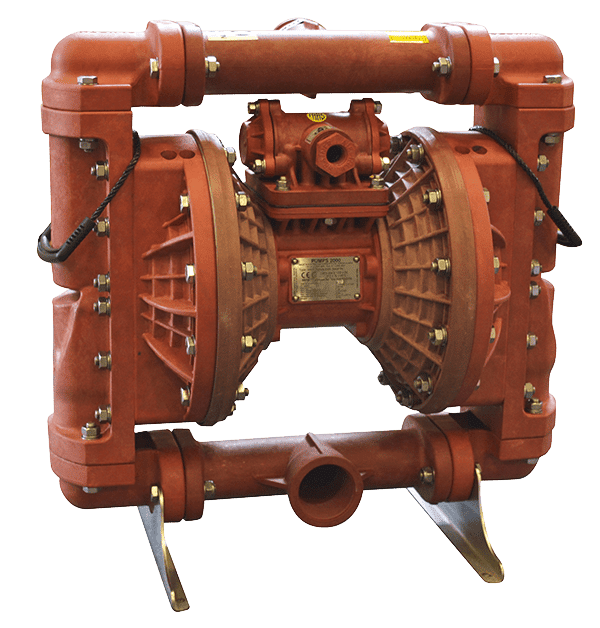

P50SR – 2” / 50mm Slurry Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 60lbs / 27.2kg Pump Weight
  • Passes suspended solids up to 1.5″ / 38mm diameter
  • Maximum flow rate of 0-146 gpm / 553 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

P50BR – 2” / 50mm Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 68lbs / 30.8kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-155 gpm / 586 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

P40BR – 1.5” / 40mm Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 50lbs / 22.7kg Pump Weight
  • Passes suspended solids up to .55” / 14mm diameter
  • Maximum flow rate of 0-117 gpm / 443 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

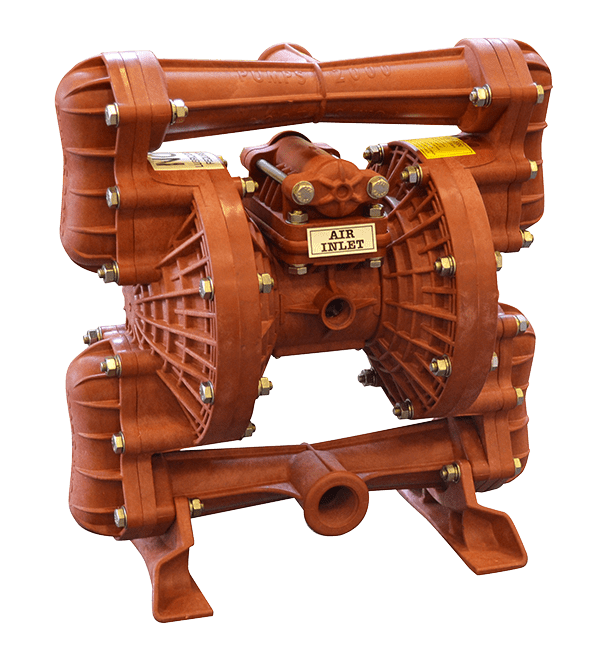

P25SR – 1” / 25mm Slurry Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 20lbs / 9.1kg Pump Weight
  • Passes suspended solids up to 0.8″ / 20mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

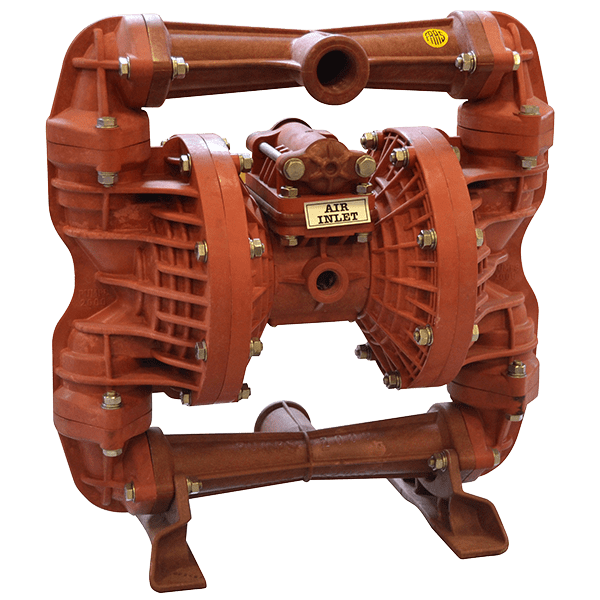

P25BR – 1” / 25mm Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 21lbs / 9.5kg Pump Weight
  • Passes suspended solids up to 0.3″ / 8mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

P15BR – ½” / 15mm Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 12lbs / 5.4kg Pump Weight
  • Passes suspended solids up to 0.2″ / 6mm diameter
  • Maximum flow rate of 0-16.4 gpm / 62 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

Double Stage Series

DS50BR – 2” / 50mm Double Staged Ball Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 128lbs / 58.1 kg Pump Weight
  • Passes suspended solids up to .71″ / 18mm diameter
  • Maximum flow rate of 0-80 gpm / 300 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

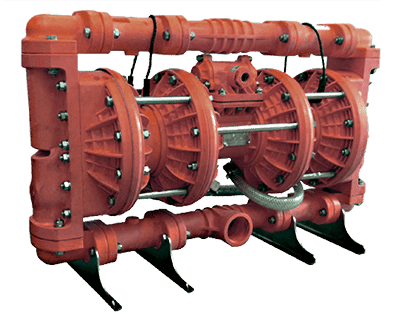

DS50SR – 2” / 50mm Double Staged Slurry Valve Red Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 118lbs / 53.5 kg Pump Weight
  • Passes suspended solids up to 1.5″ / 40mm diameter
  • Maximum flow rate of 0-80 gpm / 300 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET
