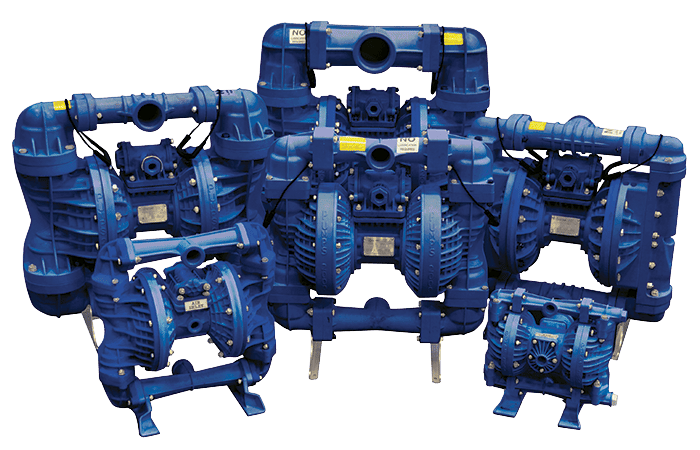

Blue Series

Pumps 2000 Blue Series pneumatic diaphragm pumps are ATEX certified pumps suitable for a wide range of acids, caustics and other chemicals. The Blue series pump housing is made of a polypropylene blend and the internal elastomers are santoprene. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.

Portable Series

P75BB – 3” / 75mm Ball Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 53 lbs / 24kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-215 gpm / 814 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

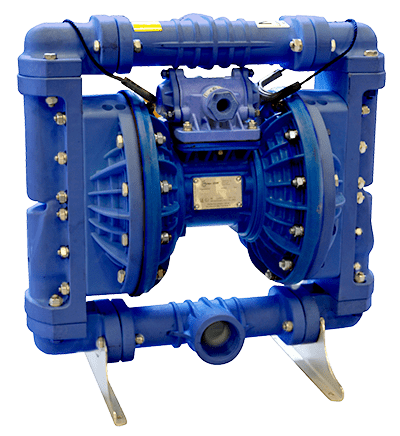

P50SB – 2” / 50mm Slurry Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 42lbs / 19kg Pump Weight
  • Passes suspended solids up to 1.5″ / 38mm diameter
  • Maximum flow rate of 0-146 gpm / 553 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

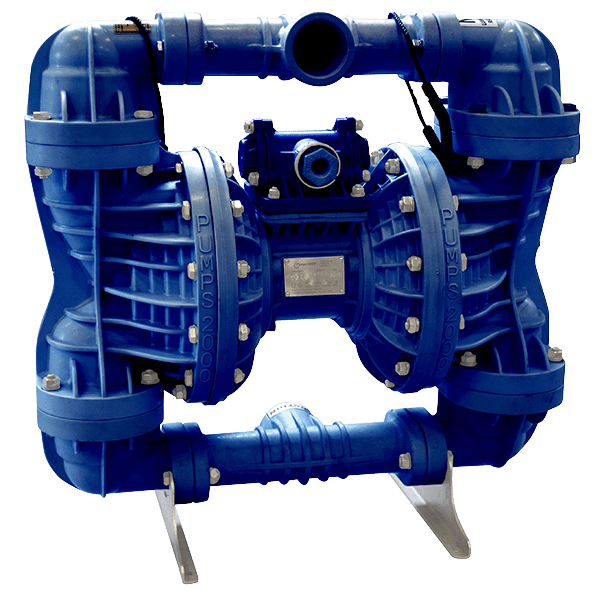

P50BB – 2” / 50mm Ball Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 48lbs / 21.8kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-155 gpm / 586 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

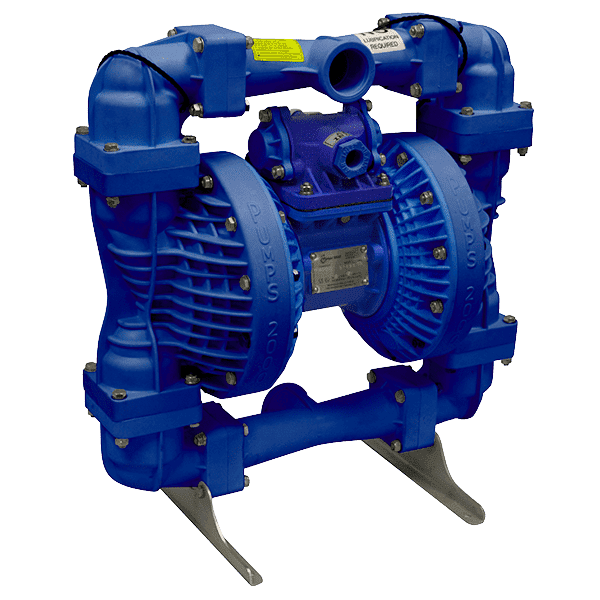

P40BB – 1.5” / 40mm Ball Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 36 lbs / 16.3kg Pump Weight
  • Passes suspended solids up to .55” / 14mm diameter
  • Maximum flow rate of 0-117 gpm / 443 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

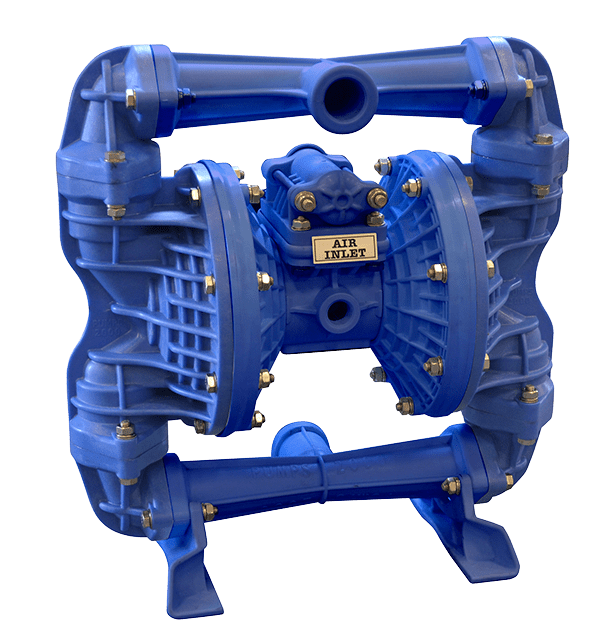

P25BB – 1” / 25mm Ball Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 15lbs / 6.8kg Pump Weight
  • Passes suspended solids up to 0.3″ / 8mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

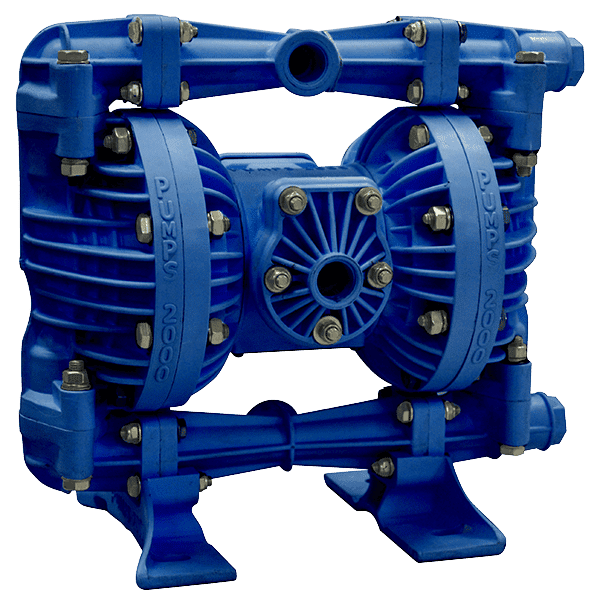

P15BB – ½” / 15mm Ball Valve Blue Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 8lbs / 3.6kg Pump Weight
  • Passes suspended solids up to 0.2″ / 6mm diameter
  • Maximum flow rate of 0-16.4 gpm / 62 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET
