EBONY SERIES

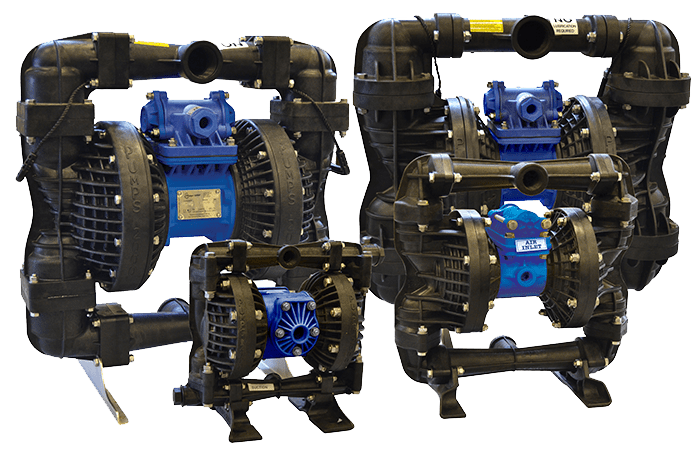

Pumps 2000 Ebony Series pneumatic diaphragm pumps are ATEX certified pumps suitable for a wide range of acids and other chemicals. The Ebony series pump housing is made of a Noryl blend and the internal elastomers are santoprene. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.

Portable Series

P50BE – 2” / 50mm Ball Valve Ebony Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 55lbs / 24.9kg Pump Weight
  • Passes suspended solids up to 0.71″ / 18mm diameter
  • Maximum flow rate of 0-155 gpm / 586 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

P40BE – 1.5” / 40mm Ball Valve Ebony Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 41 lbs / 18.6kg Pump Weight
  • Passes suspended solids up to .55” / 14mm diameter
  • Maximum flow rate of 0-117 gpm / 443 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

P25BE – 1” / 25mm Ball Valve Ebony Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 17lbs / 7.7kg Pump Weight
  • Passes suspended solids up to 0.3″ / 8mm diameter
  • Maximum flow rate of 0-58 gpm / 222 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET

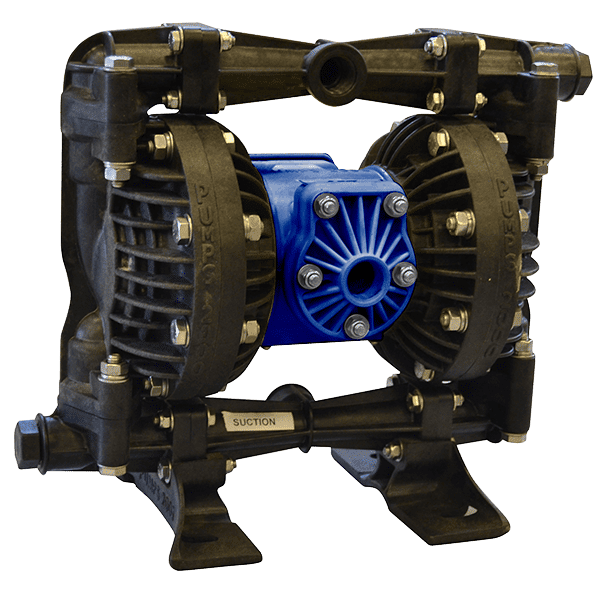

P15BE – ½” / 15mm Ball Valve Ebony Series

  • Tested at 100 psi supply air pressure (Not to exceed 125 psi)
  • 10lbs / 4.5kg Pump Weight
  • Passes suspended solids up to 0.2″ / 6mm diameter
  • Maximum flow rate of 0-16.4 gpm / 62 L/min
  • No Lubrication Required
  • Self Priming
TECH SHEET
